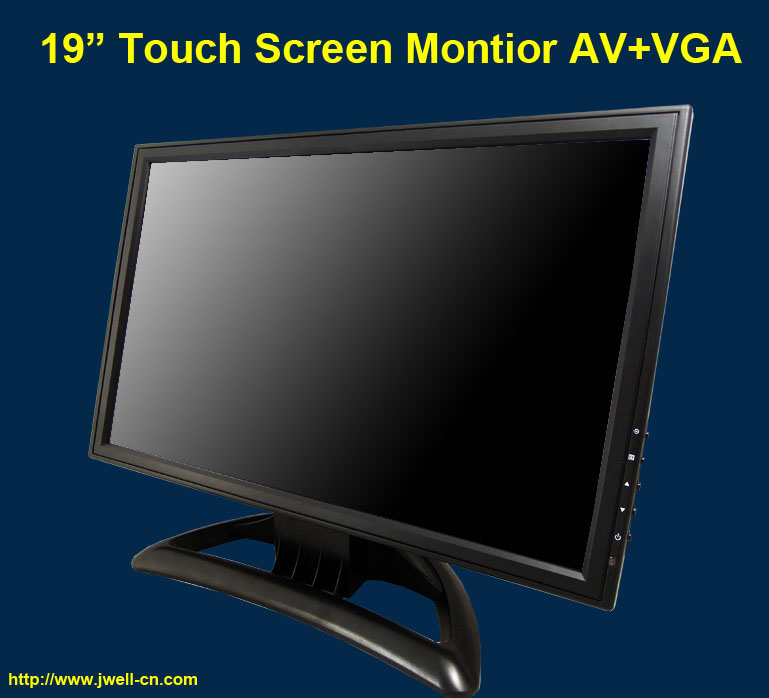

   19" LCD Monitor with PC /Touch
19

19" LCD Monitor with PC /Touch

Model Number : MPC-1908

Brief Feature:
19" LCD Monitor with PC /Touch

19" LCD Monitor with PC /Touch

One of the world's most high-precision four wires resistive type touch-screen for PC display.
(USB port/COM RS232 optional)
Sensitive touch-screen, quick response
Standard VGA (15 pin D-SUB RGB) and Two RCA/BNC video input
Built-in speaker amplifier/PC audio input and earphone jack
Operating All Systems: DOS/Windows  9X ME 2K XP  7 Vista  NT  CE / LINUX / Mac£¬etc.
Can support almost all kinds of resolution
Low radiation and consumption. High reliability, good stability,
especially for work in harsh environments.


Specification:
Panel: 19" A+ GRADE Panel
Display Type: 4:3 /16:9Ratio
Physical Resolution : 1440*900
4- wires /5-wire resistive touch-screen  optional.
Touch screen Interface: Serial (RS232) or USB optional.
15 pin D-SUB VGA signal input.
SD/USB card reader  and TV/AV function is optional.
Built in Speaker.
OSD: Remote control OSD(Voice, Brightness, Contrast)
One VGA input, 2 AV Input, 1 AV Input
Input Video Format:  Analog RGB ,NTSC/PAL/SCAME(AUTO)
Touch screen Interface: Serial (RS232) or USB
Operating System:  DOS/Window  9X  ME,  2K  XP  Vista  NT Windows CE / LINUX / Mac
Power Consumption: <30 W Typ
Working Vplt:11V-15V


Technical Specification:
Touch Response Time Serial/USB: 10.4ms
Power Supply: 85-265VAC,50-60HZ
Pixel Pitch: 0.107 (W) X 0.372(H) mm
Pixel Response Time Rise + Fall (Typically): 8ms
Brightness: 250cd/m2
Contrast: 1000:1
Viewing Angle Horizontal (left/right): 170¡ã (85¡ã/85¡ã)
 (From Centre, CR>=5) Vertical (up/down): 160¡ã (70¡ã/90¡ã)
Temperature Range: Operating:-20¡ãC-60¡ãC,
Storage:-30¡ãC-70¡ãC
Relative Humidity Non Condensing:  Operating:10%-90%, Storage 5%-90%
FM/IR Range: FM-30-88.9 MHz, IR-2.3MHZ-2.8MHZ
TV Channel Parameter: VHF-L 48.25~170.00Mhz  VHF-H 170.00~450.00Mhz

Packing:
Quantity:3pcs/ctn
Net Weight:17.5kg/ctn
Gross Weight:19kg/ctn
Carton:54x48x45cm
Warranty: 1 year
Agency Approvals: FCC, CE, ROHS

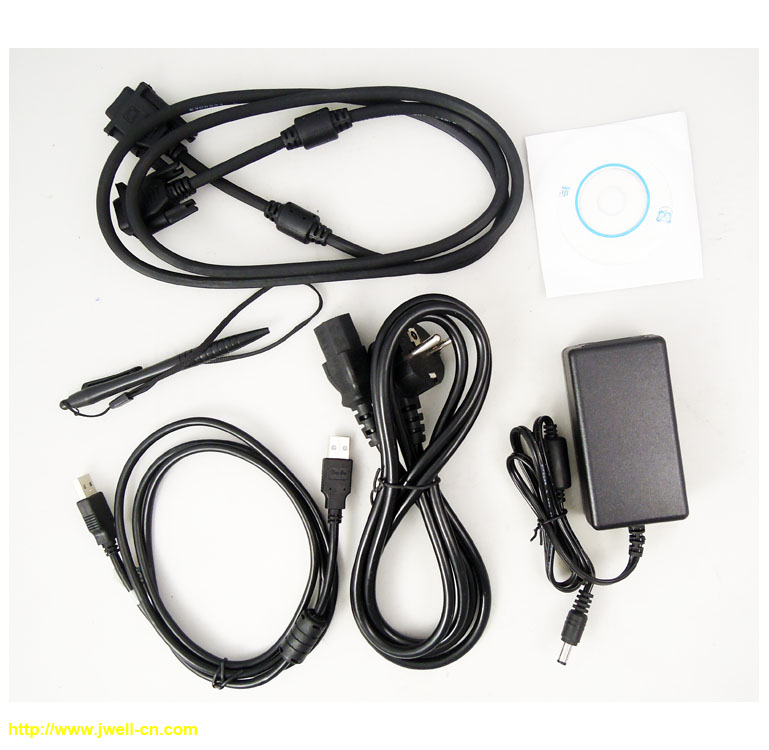

Accessories:
VGA cable
Touch USB cable
Video/audio cable
BNC cable (optional)
Remote
Power Supply Adaptor
Power Lead(US,EU,UK etc type)
Software touch driver CD
User Manual (English)
Touch Pan
Bracket


Typical Applications:
Entertainment /Casino Systems
Outdoor and indoor Kiosks
Entertainment
Transport and Ticketing
Television station
Education
Exhibition
Advertisement
Hotel/Hospitality
Car PC
Industry equipment
Banking
Customised Solutions
