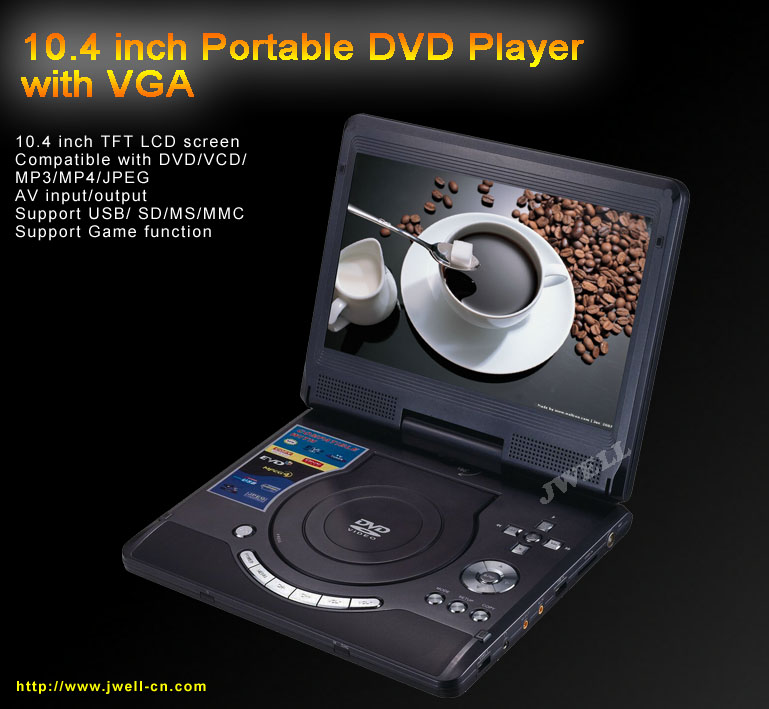

   10.4 inch Portable DVD Player
10.4 inch Portable DVD Player

10.4 inch Portable DVD Player

Model Number : PD-1058T

Brief Feature:
10.4 inch TFT LCD screen Portable video Player with VGA
Compatible with DVD/VCD/MP3/MP4/JPEG
AV input/output
Support USB/ SD/MS/MMC
Support Game function


1)  Screen size: 10.4 ( 16:9 ) inches ( TFT LCD new panel )
2)  High Resolution: 640 X RGB X 480
2)  Solution: MTK1389DE-J, Hitachi 1200X lens
2)  Compatible with DVD/DVD±R/DVD±RW/VCD/ MP3/MP4/CD±R/CD±RW/JPEG/DIVX
3)  270°swiveling screen
4)  Built-in Analog TV tuner ( PAL/NTSC/SECAM )
5)  Built-in 2.0 USB port
6)  Built-in SD/MS/MMC card reader
7)  Built-in Game function
8)  AV input and output
9)  Support Copy function,Copy music from MP3/CD discs to USB/SD card device
10) Built-in 1400mah rechargeable Li-ion battery,support 2 hours continual working
11) Super anti-shock
12) With full function remote control and Audio-swap channels
13) Multi OSD Menu language:English,French,Spanish,Portuguese, German,Italian,Chinese,Russian
14) Home adapter and car adapter are available
15) AC input 100-240V 50/60Hz
16) DC output 9V 2A


1. A/V cable
2. Home adapter
3. Car adapter
4. Earphone
5. Game Joystick
6. TV cable
7. Game disk with 300 games
8. User manual
9. Remote controller

Technical Specifications:

Product Name 10.4 inch Portable video Player with VGA
Model No. PD-1058
Screen Size 10.4 inch (4:3 TFT-LCD)
Swiveling Screen 270degreen
Screen Brand Hannstar ( made in Taiwan )
Screen Resolution 640XRGBX480
DVD Specifications:
Solution/MainBoard MTK
DVD loader Hitachi ( made in Japan)
DVD Lens Hitachi ( made in Japan)
Contrast 250:1
Brightness 350cd/m2
Color System PAL/NTSC/SECAM System
TV Receiving Channel VHF1-12Channels, UHF13-69Channels, CATV
Input impendance 75 OHM
Temperature Operation temperature -0degreenC to 40degreenC
Shock Resistance YES
Built-in DOLBY YES
Built-in Battery YES
Game YES
Memary cards MMC,SD,MS
USB Support USB 2.0
Audio S/N Ratio >=50 dB
Isolation >=55 dB
Audio output 2Vp_p;Ioad impedance:10KΩ
Video input 1Vp_p+-20%/750hm
Power supply AC100-240V, DC9-12V 2A Output
Power consumption <=10W
Product Dimension 210mm X 170mm X 42mm
Product N.W 1.2KG
Packing Details: Gift box size: 405*253*80mm
  Gift box G.W: 14.6KG/PC
  Carton Size:425*420*273mm
  10PCS/CTN; G.W:15.3KG/CTN
