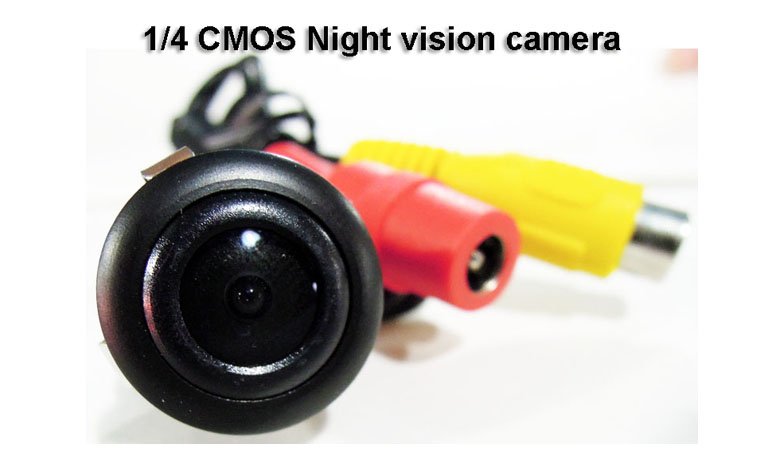

rear view camera with PAL/NTSC 97 degree
rear view camera with PAL/NTSC 97 degree
Model Number : CM125
Brief Feature:
Image sensor: OV 1/4-inch color CMOS
TV System: PAL /NTSC
Total Pixels : 628x582 pixels
Power Supply : DC12V
View Angle: 97 degree
Night vision
1 / 4" CMOS SENSOR SPECIFICATIONS
Image Device: OV7940
TV System: PAL / NTSC
Effective Pixels: 628 x 582 pixels / 510 x 492 pixels
Sensing Area: 5.78mm x 4.19mm / 4.69mm x 3.54mm
Scanning System: 2:1Interlace
Sync. System: Internal
Resolution: 420TV lines
Horizontal Sync. Frequency: 15.625KHz / 15.734KHz
Vertical Sync. Frequency : 50Hz / 60Hz
Minimum Illumination: 0 Lux/F1.2 with IR
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60~1/15,000 Seconds
BLC: Auto
Current Consumption:50mA
Power Supply: DC12V
Operating Temperature: －10degreenC~46degreenC , RH95％ MAX
Storage Temperature: －30degreenC~60degreenC，RH95％ MAX
Lens: 3.6mm F = 2.0
Lens Angle: 92(P)
